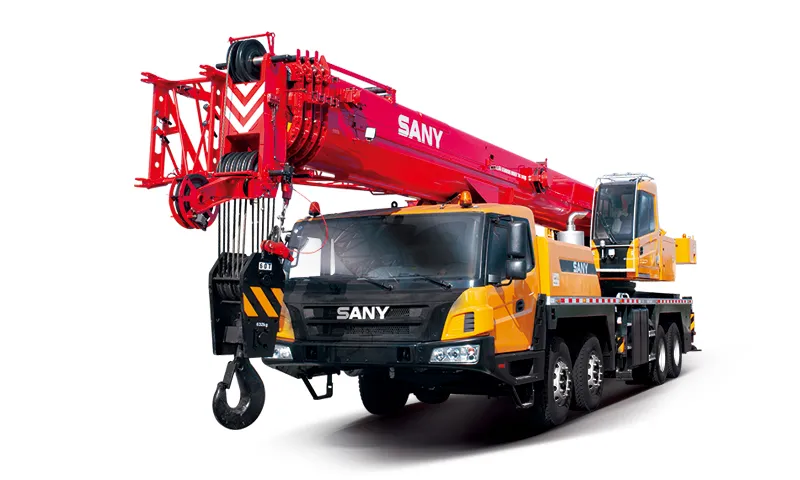

The SANY STC500 series represents a robust line of 50-ton capacity truck-mounted cranes—purpose-built for high performance, operational efficiency, and safety on diverse job sites.
Load Chart For SANY 50 Ton Crane (STC500)
Configuration: 40 m Main Boom + 10 m Jib
| Boom Angle (°) | Jib Offset 0° (kg) | Jib Offset 15° (kg) | Jib Offset 30° (kg) |
|---|---|---|---|
| 80° | 2200 | 1700 | 1300 |
| 70° | 2000 | 1500 | 1200 |
| 60° | 1600 | 1300 | 1100 |
| 50° (min) | 1300 | 1000 | 800 |
Configuration: 40 m Main Boom + 6 m Jib
| Boom Angle (°) | Jib Offset 0° (kg) | Jib Offset 15° (kg) | Jib Offset 30° (kg) |
|---|---|---|---|
| 80° | 2500 | 2000 | 1600 |
| 70° | 2200 | 1700 | 1400 |
| 60° | 1800 | 1500 | 1200 |
| 50° (min) | 1500 | 1300 | 1000 |
Configuration: 40 m Main Boom (No Jib)
| Boom Angle (°) | Jib Offset 0° (kg) |
|---|---|
| 80° | 3000 |
| 70° | 2700 |
| 60° | 2300 |
| 50° (min) | 2000 |
Why To Choose Sany 50 Ton?
| Feature Category | Details |
|---|---|
| Lifting Capacity | 50 tons |
| Boom System | 5-section telescopic boom (43–45 m) |
| Jib Extension | Optional fixed jib up to 16 m |
| Engine | 247 kW diesel, CEV Stage IV compliant |
| Hydraulic System | Smart Hydraulics with Double Pump Intelligent Flow Distribution |
| Control System | CAN-bus digital control, Load Moment Indicator (LMI) |
| Chassis Design | High-strength truck chassis; tested with 200,000+ fatigue cycles |
| Travel Speed | Up to ~85 km/h |
| Stability System | Hydraulic outriggers for enhanced lifting stability |
| Ideal Applications | Construction, infrastructure, heavy industrial lifting |
Summary: SANY 50 Ton Crane (STC500)
The SANY 50 Ton Crane (STC500) is a highly reliable, versatile, and efficient mobile crane engineered for heavy-duty lifting tasks in construction, infrastructure, and industrial applications. With its robust design and advanced technology, the STC500 offers exceptional lifting performance while ensuring ease of operation, safety, and flexibility.
